JFreechart教程

JFreeChart 时间序列图

JFreeChart-时间序列图表

时间序列图表表示以相等的时间间隔变化的数值数据序列。
下图显示一些包含在 JFreeChart 库中的时间序列图表演示版本:

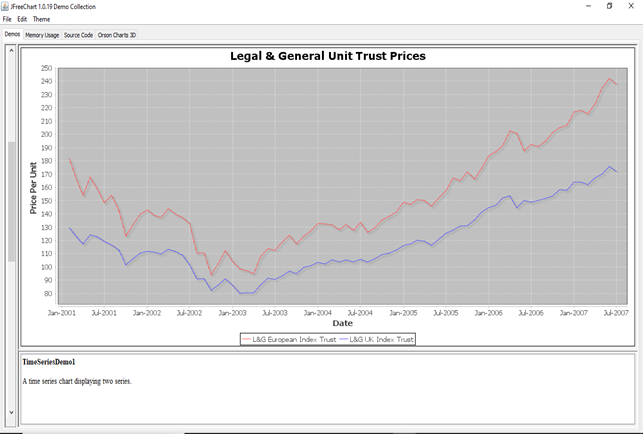

时间序列图表演示 1:
JFreeChart 时间序列图表演示 1

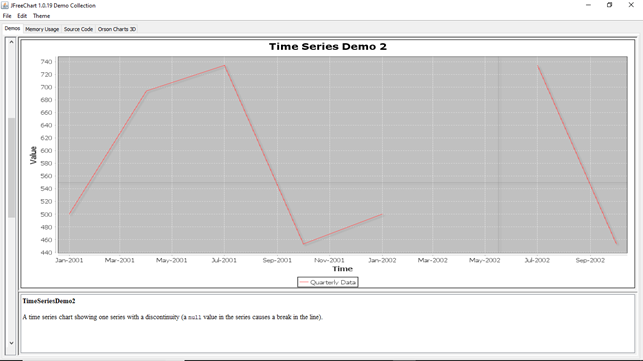

时间序列图表演示 2:
JFreeChart 时间序列图表演示 2

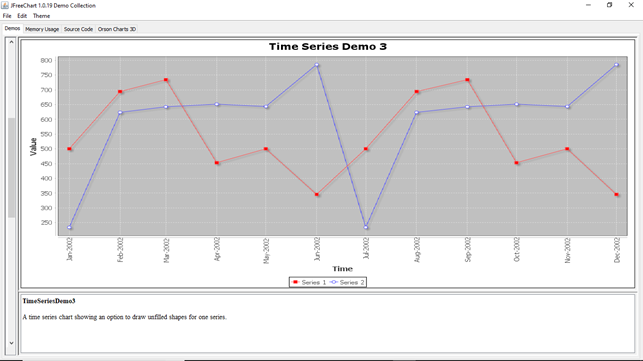

时间序列图表演示 3:
JFreeChart 时间序列图表演示 3

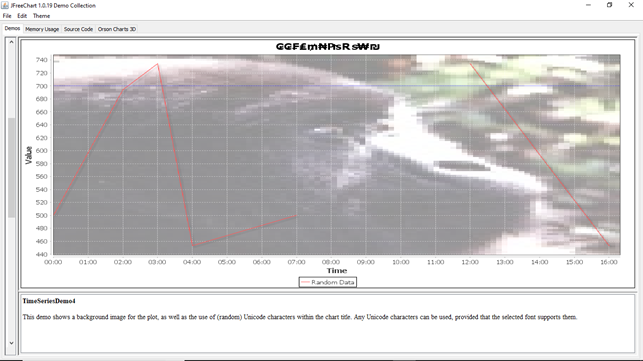

时间序列图表演示 4:
JFreeChart 时间序列图表演示 4
时间序列图表演示 5:
JFreeChart 时间序列图表演示 5

时间序列图表示例:

让我们考虑以下是时间序列图表的示例数据。
日期 系列一 系列二
2017-01-01 50 40
2017-01-02 40 35
2017-01-03 45 26
2017-01-04 30 45
2017-01-05 50 40
2017-01-06 45 35
2017-01-07 60 45
2017-01-08 45 48
2017-01-09 55 31
2017-01-10 48 32
2017-01-11 60 21
2017-01-12 45 35
2017-01-13 65 10
2017-01-14 45 25
2017-01-15 55 15
以下代码根据上述示例数据创建气泡图:

TimeSeriesChartExample.java

import java.awt.Color;
import javax.swing.JFrame;
import javax.swing.SwingUtilities;
import javax.swing.WindowConstants;
import org.jfree.chart.ChartFactory;
import org.jfree.chart.ChartPanel;
import org.jfree.chart.JFreeChart;
import org.jfree.chart.plot.XYPlot;
import org.jfree.data.time.Day;
import org.jfree.data.time.TimeSeries;
import org.jfree.data.time.TimeSeriesCollection;
import org.jfree.data.xy.XYDataset;
public class TimeSeriesChartExample extends JFrame {
  private static final long serialVersionUID = 1L;
  public TimeSeriesChartExample(String title) {
    super(title);
    // Create dataset
    XYDataset dataset = createDataset();
    // Create chart
    JFreeChart chart = ChartFactory.createTimeSeriesChart(
        "Time Series Chart Example", // Chart
        "Date", // X-Axis Label
        "Number", // Y-Axis Label
        dataset);
    //Changes background color
    XYPlot plot = (XYPlot)chart.getPlot();
    plot.setBackgroundPaint(new Color(255,228,196));

    ChartPanel panel = new ChartPanel(chart);
    setContentPane(panel);
  }
  private XYDataset createDataset() {
    TimeSeriesCollection dataset = new TimeSeriesCollection();
    TimeSeries series1 = new TimeSeries("Series1");
    series1.add(new Day(1, 1, 2017), 50);
    series1.add(new Day(2, 1, 2017), 40);
    series1.add(new Day(3, 1, 2017), 45);
    series1.add(new Day(4, 1, 2017), 30);
    series1.add(new Day(5, 1, 2017), 50);
    series1.add(new Day(6, 1, 2017), 45);
    series1.add(new Day(7, 1, 2017), 60);
    series1.add(new Day(8, 1, 2017), 45);
    series1.add(new Day(9, 1, 2017), 55);
    series1.add(new Day(10, 1, 2017), 48);
    series1.add(new Day(11, 1, 2017), 60);
    series1.add(new Day(12, 1, 2017), 45);
    series1.add(new Day(13, 1, 2017), 65);
    series1.add(new Day(14, 1, 2017), 45);
    series1.add(new Day(15, 1, 2017), 55);
    dataset.addSeries(series1);
    TimeSeries series2 = new TimeSeries("Series2");
    series2.add(new Day(1, 1, 2017), 40);
    series2.add(new Day(2, 1, 2017), 35);
    series2.add(new Day(3, 1, 2017), 26);
    series2.add(new Day(4, 1, 2017), 45);
    series2.add(new Day(5, 1, 2017), 40);
    series2.add(new Day(6, 1, 2017), 35);
    series2.add(new Day(7, 1, 2017), 45);
    series2.add(new Day(8, 1, 2017), 48);
    series2.add(new Day(9, 1, 2017), 31);
    series2.add(new Day(10, 1, 2017), 32);
    series2.add(new Day(11, 1, 2017), 21);
    series2.add(new Day(12, 1, 2017), 35);
    series2.add(new Day(13, 1, 2017), 10);
    series2.add(new Day(14, 1, 2017), 25);
    series2.add(new Day(15, 1, 2017), 15);
    dataset.addSeries(series2);

    return dataset;
  }
  public static void main(String[] args) {
    SwingUtilities.invokeLater(()-> {
      TimeSeriesChartExample example = new TimeSeriesChartExample("Time Series Chart");
      example.setSize(800, 400);
      example.setLocationRelativeTo(null);
      example.setVisible(true);
      example.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
    });
  }
}

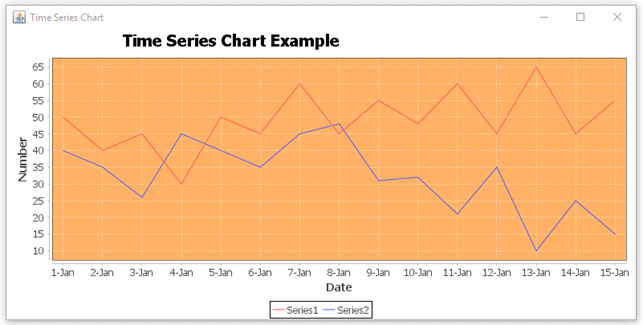

输出:
JFreeChart 时间序列图表示例
