BabylonJS 动画

动画使场景更具互动性，并使其具有逼真的外观令人印象深刻。现在让我们详细了解动画。我们将对形状应用动画以将其从一个位置移动到另一个位置。要使用动画，您需要使用所需参数创建动画对象。

现在让我们看看相同的语法-

var animationBox = new BABYLON.Animation(
   "myAnimation",
   "scaling.x",
   30,
   BABYLON.Animation.ANIMATIONTYPE_float,
   BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE
);

参数

考虑以下与 BabylonJS 动画相关的参数-

动画名称。形状的属性——例如，缩放、改变位置等。缩放是语法中显示的内容；在这里，它将沿 x 轴缩放框。请求的每秒帧数：此动画中可能达到的最高 FPS。在这里您决定并输入要修改的值类型：它是浮点数（例如平移）、向量（例如方向）还是四元数。确切的值是- BABYLON.Animation.ANIMATIONTYPE_FLOAT BABYLON.Animation.ANIMATIONTYPE_VECTOR2 BABYLON.Animation.ANIMATIONTYPE_VECTOR3 BABYLON.Animation.ANIMATIONTYPE_QUATERNION BABYLON.Animation.ANIMATIONTYPE_COLOR3 动画行为-停止或重新开始动画。使用以前的值并增加它- BABYLON.Animation.ANIMATIONLOOPMODE_RELATIVE 从初始值重新启动- BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE 保持最终价值 BABYLON.Animation.ANIMATIONLOOPMODE_CONSTANT

现在让我们创建动画对象-

var animationBox = new BABYLON.Animation(
   "myAnimation",
   "scaling.x",
   30,
   BABYLON.Animation.ANIMATIONTYPE_float,
   BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE
);

动画演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);

         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3(0, 1, 0);

            var camera = new BABYLON.ArcRotateCamera("Camera", 1, 0.8, 10, new BABYLON.Vector3(0, 0, 0), scene);
            camera.attachControl(canvas, true);

            var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(0, 1, 0), scene);
            light.intensity = 0.7;

            var pl = new BABYLON.PointLight("pl", BABYLON.Vector3.Zero(), scene);
            pl.diffuse = new BABYLON.Color3(1, 1, 1);
            pl.specular = new BABYLON.Color3(1, 1, 1);
            pl.intensity = 0.8;

            var box = BABYLON.Mesh.CreateBox("box", '3', scene);
            box.position = new BABYLON.Vector3(-10,0,0);
            var box1 = BABYLON.Mesh.CreateBox("box1", '3', scene);
            box1.position = new BABYLON.Vector3(0,0,0);
            var animationBox = new BABYLON.Animation("myAnimation", "scaling.x", 30, BABYLON.Animation.ANIMATIONTYPE_float, BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE);
            var animationBox1 = new BABYLON.Animation("myAnimation1", "scaling.z", 10, BABYLON.Animation.ANIMATIONTYPE_float, BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE);
            // An array with all animation keys
            var keys = [];
            //At the animation key 0, the value of scaling is "1"
            keys.push({
               frame: 0,
               value: 1
            });
            //At the animation key 20, the value of scaling is "0.2"
            keys.push({
               frame: 20,
               value: 0.2
            });
            keys.push({
               frame: 60,
               value: 0.4
            });
            //At the animation key 100, the value of scaling is "1"
            keys.push({
               frame: 100,
               value: 1
            });

            animationBox.setKeys(keys);
            box.animations = [];
            box.animations.push(animationBox);
            scene.beginAnimation(box, 0, 100, true);
            // An array with all animation keys
            var keys = [];
            //At the animation key 0, the value of scaling is "1"
            keys.push({
               frame: 0,
               value: 1
            });
            //At the animation key 20, the value of scaling is "0.2"
            keys.push({
               frame: 60,
               value: 0.2
            });
            //At the animation key 100, the value of scaling is "1"
            keys.push({
               frame: 100,
               value: 1
            });
            animationBox1.setKeys(keys);
            box1.animations = [];
            box1.animations.push(animationBox1);
            scene.beginAnimation(box1, 0, 100, true);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

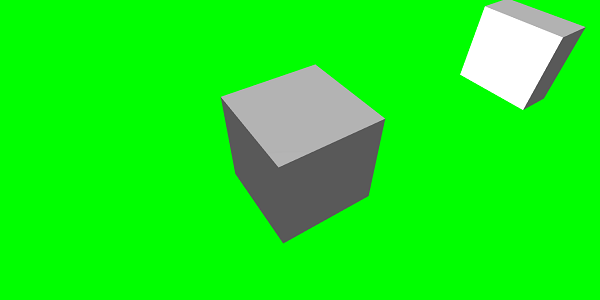

输出

// An array with all animation keys
var keys = [];
//At the animation key 0, the value of scaling is "1"
keys.push({
   frame: 0,
   value: 1
});
//At the animation key 20, the value of scaling is "0.2"
keys.push({
   frame: 20,
   value: 0.2
});
//At the animation key 100, the value of scaling is "1"
keys.push({
   frame: 100,
   value: 1
});
animationBox.setKeys(keys);
box.animations = [];
box.animations.push(animationBox);
scene.beginAnimation(box, 0, 100, true); //defines the start and the end on the target shape box.

以下是动画对象可用的其他功能-

pause() restart() stop() reset()

我们可以将 beginAnimation 引用存储在一个变量中，并使用该引用来停止、暂停或重置动画。

var newAnimation = scene.beginAnimation(box1, 0, 100, true);

例如

newAnimation.pause();

动画对象有控制关键帧的函数。

BABYLON.Animation.prototype.floatInterpolateFunction = function (startValue, endValue, gradient) {
   return startValue + (endValue-startValue) * gradient;
};
BABYLON.Animation.prototype.quaternionInterpolateFunction = function (startValue, endValue, gradient) {
   return BABYLON.Quaternion.Slerp(startValue, endValue, gradient);
};
BABYLON.Animation.prototype.vector3InterpolateFunction = function (startValue, endValue, gradient) {
   return BABYLON.Vector3.Lerp(startValue, endValue, gradient);
};

这是您可以更改的功能列表-

floatInterpolateFunction quaternionInterpolateFunction quaternionInterpolateFunctionWithTangents vector3InterpolateFunction vector3InterpolateFunctionWithTangents vector2InterpolateFunction vector2InterpolateFunctionWithTangents sizeInterpolateFunction color3InterpolateFunction matrixInterpolateFunction

要创建一个快速动画，有一个可以直接使用的功能。

例如

Animation.CreateAndStartAnimation = function(name, mesh, tartgetProperty, framePerSecond, totalFrame, from, to, loopMode);

此处您只能使用 2 个关键帧- start 和 end。

演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);

         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3(0, 1, 0);

            var camera = new BABYLON.ArcRotateCamera("Camera", 1, 0.8, 10, new BABYLON.Vector3(0, 0, 0), scene);
            camera.attachControl(canvas, true);

            var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(0, 1, 0), scene);
            light.intensity = 0.7;

            var pl = new BABYLON.PointLight("pl", BABYLON.Vector3.Zero(), scene);
            pl.diffuse = new BABYLON.Color3(1, 1, 1);
            pl.specular = new BABYLON.Color3(1, 1, 1);
            pl.intensity = 0.8;

            var box = BABYLON.Mesh.CreateBox("box", '3', scene);
            box.position = new BABYLON.Vector3(0,0,0);
            BABYLON.Animation.CreateAndStartAnimation('boxscale', box, 'scaling.x', 30, 120, 1.0, 1.5);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

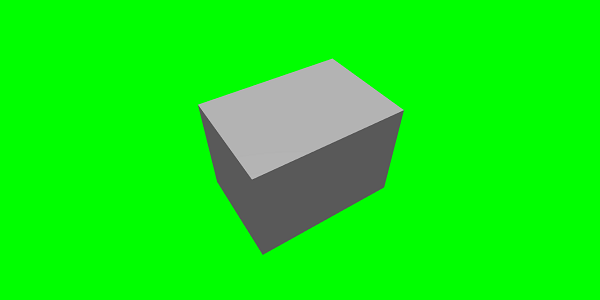

输出

动画混合

可以借助 enableBlending = true 实现动画混合；

这个混合动画将从当前对象状态改变。

缓动函数

为了让动画更令人印象深刻，有一些缓动函数我们之前已经在 css 中使用过。

以下是缓动函数列表-

BABYLON.CircleEase () BABYLON.BackEase (amplitude) BABYLON.BounceEase (bounces, bounciness) BABYLON.CubicEase () BABYLON.ElasticEase (oscillations, springiness) BABYLON.ExponentialEase (exponent) BABYLON.PowerEase (power) BABYLON.QuadraticEase () BABYLON.QuarticEase () BABYLON.QuinticEase () BABYLON.SineEase ()

演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);
         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3(0, 1, 0);

            var camera = new BABYLON.ArcRotateCamera("Camera", 1, 0.8, 10, new BABYLON.Vector3(0, 0, 0), scene);
            camera.attachControl(canvas, true);

            var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(0, 1, 0), scene);
            light.intensity = 0.7;

            var pl = new BABYLON.PointLight("pl", BABYLON.Vector3.Zero(), scene);
            pl.diffuse = new BABYLON.Color3(1, 1, 1);
            pl.specular = new BABYLON.Color3(1, 1, 1);
            pl.intensity = 0.8;
            var box1 = BABYLON.Mesh.CreateTorus("torus", 5, 1, 10, scene, false);
            box1.position = new BABYLON.Vector3(0,0,0);
            var animationBox1 = new BABYLON.Animation("myAnimation1", "scaling.z", 10, BABYLON.Animation.ANIMATIONTYPE_float, BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE);
            // An array with all animation keys
            var keys = [];
            //At the animation key 0, the value of scaling is "1"
            keys.push({
               frame: 0,
               value: 1
            });
            //At the animation key 20, the value of scaling is "0.2"
            keys.push({
               frame: 60,
               value: 0.2
            });
            //At the animation key 100, the value of scaling is "1"
            keys.push({
               frame: 100,
               value: 1
            });

            animationBox1.setKeys(keys);
            box1.animations = [];
            // box1.animations.push(animationBox1);
            var easingFunction = new BABYLON.QuarticEase();
            easingFunction.setEasingMode(BABYLON.EasingFunction.EASINGMODE_EASEINOUT);
            animationBox1.setEasingFunction(easingFunction);
            box1.animations.push(animationBox1);
            scene.beginAnimation(box1, 0, 100, true);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

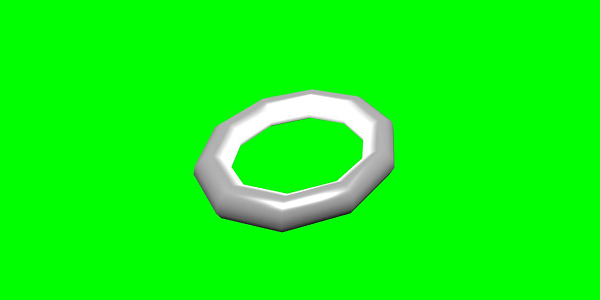

输出

动画事件

您可以对动画事件执行任何必要的操作。如果你想在改变帧或动画完成时改变什么，可以通过向动画添加事件来实现。

var event1 = new BABYLON.AnimationEvent(50, function() { console.log("Yeah!"); }, true);
// You will get hte console.log when the frame is changed to 50 using animation.
animation.addEvent(event1); //attaching event to the animation.

BabylonJS-精灵

精灵在计算机图形中指的是什么？它基本上是一个集成到更大场景中的二维位图。当多个较小的图像组合成一个位图以节省内存时，生成的图像称为精灵表。让我们开始使用精灵以及如何使用它们。

开始使用精灵的第一步是创建一个精灵管理器。

var spriteManagerTrees = new BABYLON.SpriteManager("treesManagr", "Assets/Palm-arecaceae.png", 2000, 800, scene);

考虑以下参数来创建精灵管理器-

Name-该经理的姓名。 URL-要使用的图像 URL。 Capacity of manager-此管理器中的最大实例数。例如，上述实例将创建 2000 棵树。 Cell size-图像所取的大小。 Scene-将添加经理的场景。

var spriteManagerPlayer = new BABYLON.SpriteManager("playerManagr","Assets/Player.png", 2, 64, scene);

看看上面的对象。我们已经给出了一个玩家图像，现在正在创建它的 2 个实例。图片大小为64，每个精灵图片必须包含在一个64像素的正方形内，不多不少。

现在让我们创建与精灵管理器相同的实例。

var player = new BABYLON.Sprite("player", spriteManagerPlayer);

您可以像使用任何其他形状或网格一样使用此播放器对象。您可以指定位置、大小、角度等。

player.size = 0.3;
player.angle = Math.PI/4;
player.invertU =-1;
player.width = 0.3;
player.height = 0.4;

演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);
         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            //scene.clearColor = new BABYLON.Color3(0, 1, 0);
            // Create camera and light
            var light = new BABYLON.PointLight("Point", new BABYLON.Vector3(5, 10, 5), scene);

            var camera = new BABYLON.ArcRotateCamera("Camera", 1, 0.8, 8, new BABYLON.Vector3(0, 0, 0), scene);
            camera.attachControl(canvas, true);
            var spriteManagerTrees = new BABYLON.SpriteManager("trees", "images/tree.png", 1000, 400, scene);
            for (var i = 0; i < 1000; i++) {
               var tree = new BABYLON.Sprite("tree", spriteManagerTrees);
               tree.position.x = Math.random() * 100-50;
               tree.position.z = Math.random() * 100-50;
               tree.isPickable = true;
               //Some "dead" trees
               if (Math.round(Math.random() * 5) === 0) {
                  tree.angle = Math.PI * 90 / 180;
                  tree.position.y =-0.3;
               }
            }
            var spriteManagerTrees1 = new BABYLON.SpriteManager("trees1", "images/tree1.png", 1000,400, scene);
            for (var i = 0; i < 1000; i++) {
               var tree1 = new BABYLON.Sprite("tree1", spriteManagerTrees1);
               if (i %2 == 0) {
               tree1.position.x = Math.random() * 100-50;
               } else {
                  tree1.position.z = Math.random() * 100-50;
               }
               tree1.isPickable = true;
            }
            spriteManagerTrees.isPickable = true;
            spriteManagerTrees1.isPickable = true;
            var spriteManagerPlayer = new BABYLON.SpriteManager("playerManager", "images/bird.png", 2, 200, scene);

            var player = new BABYLON.Sprite("player", spriteManagerPlayer);
            player.position.x = 2;
            player.position.y = 2;
            player.position.z = 0;
            var spriteManagerPlayer1 = new BABYLON.SpriteManager("playerManager1", "images/bird.png", 2, 200, scene);

            var player1 = new BABYLON.Sprite("player", spriteManagerPlayer1);
            player1.position.x = 1;
            player1.position.y = 2;
            player1.position.z = 0;
            var spriteManagerPlayer2 = new BABYLON.SpriteManager("playerManager2", "images/bird.png", 2, 200, scene);

            var player2 = new BABYLON.Sprite("player", spriteManagerPlayer2);
            player2.position.x = 0;
            player2.position.y = 1;
            player2.position.z = 0;
            scene.onPointerDown = function (evt) {
               var pickResult = scene.pickSprite(this.pointerX, this.pointerY);
               if (pickResult.hit) {
                  pickResult.pickedSprite.angle += 1;
               }
            };
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

输出

在这个演示中，我们使用了一个名为 tree.png 的图像，tree1.png 显示了树木，bird.png 显示了场景中的鸟。这些图像存储在本地的图像/文件夹中，也粘贴在下面以供参考。您可以下载任何您选择的图片并在演示链接中使用。

用于树的图像如下所示。

图像/tree.png

图像/tree1.png

图片/bird.png

现在让我们再看一个关于 sprites-balloon 的演示。

带有精灵气球的演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height:100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);

         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            var light = new BABYLON.PointLight("Point", new BABYLON.Vector3(5, 10, 5), scene);

            var camera = new BABYLON.ArcRotateCamera("Camera",-3.4, 1.0, 82, new BABYLON.Vector3(0,-15, 0), scene);
            camera.setPosition(new BABYLON.Vector3(30, 0,100));
            camera.attachControl(canvas, true);

            var spriteManagerTrees = new BABYLON.SpriteManager("trees", "images/balloon.png", 50, 450, scene);
            var treearray = [];
            for (var i = 0; i < 50; i++) {
               var tree = new BABYLON.Sprite("tree", spriteManagerTrees);
               tree.position.x = Math.random() * 100-10;
               tree.position.z = Math.random() * 100-10;
               tree.position.y =-35;
               tree.isPickable = true;
               treearray.push(tree);
            }
            spriteManagerTrees.isPickable = true;
            scene.onPointerDown = function (evt) {
               var pickResult = scene.pickSprite(this.pointerX, this.pointerY);
               if (pickResult.hit) {
                  pickResult.pickedSprite.position.y =-3000;
               }
            };

            k =-35;
            var animate = function() {
               if (k > 3) return;
               k += 0.05;
               for (var i = 0; i < treearray.length; i++) {
                  treearray[i].position.y = k;
               }
            };
            scene.registerBeforeRender(animate);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

输出

在这个演示中，我们使用了名为 ballon.png 的图像。图片存储在本地的images/文件夹中，也贴在下面以供参考。您可以下载任何您选择的图片并在演示链接中使用。

images/balloon.png

气球会在天空中升起，一旦它们停止，您可以点击它们，它们就会消失。这是使用 pickSprite 函数完成的，该函数会在单击创建的精灵时提供详细信息。

当鼠标动作发生并且精灵的位置发生变化时调用onPointerDown函数。

var animate = function() {
   if (k > 3) return;
   k += 0.05;
   for (var i = 0; i < treearray.length; i++) {
      treearray[i].position.y = k;
   }
};
scene.registerBeforeRender(animate);

animate 函数在 registerBeforeRender 中调用，它负责将气球从初始-35 移动到 +3、它通过增加 0.05 来缓慢移动。

BabylonJS-粒子

粒子系统是计算机图形学中的一种技术，它利用大量非常小的精灵、3D 模型或其他图形对象来模拟某些类型的"模糊"现象，否则这些现象很难用传统的方法重现渲染技术。

要创建粒子系统，您必须按如下方式调用该类-

var particleSystem = new BABYLON.ParticleSystem("particles", 2000, scene);//2000 refers to the total number of particles to be produced.

粒子系统需要考虑以下属性-

particleSystem.particleTexture = new BABYLON.Texture("Flare.png", scene);
particleSystem.textureMask = new BABYLON.Color4(0.1, 0.8, 0.8, 1.0);
particleSystem.emitter = fountain
particleSystem.color1 = new BABYLON.Color4(0.7, 0.8, 1.0, 1.0);
particleSystem.color2 = new BABYLON.Color4(0.2, 0.5, 1.0, 1.0);
particleSystem.colorDead = new BABYLON.Color4(0, 0, 0.2, 0.0);

发射器属性采用必须发射粒子的网格。 color1 和 color2 是粒子的颜色。

ColorDead 是在粒子从场景中消失之前应用到粒子的颜色，因此称为 colorDead。

particleSystem.minSize = 0.1;
particleSystem.maxSize = 0.5;
particleSystem.minLifeTime = 0.3;
particleSystem.maxLifeTime = 1.5;

MinSize 和 maxSize 是赋予粒子的大小。 MinlifeTime 和 maxLifeTime 是赋予粒子的生命周期。

particleSystem.emitRate = 1500;

emitRate 是粒子发射的速率。

我们在下面显示的演示中使用了环面。我们已经使用粒子系统及其属性来获取环面周围的所有粒子。

演示 1

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Basic Element-Creating Scene</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);
         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            // Setup environment

            var light0 = new BABYLON.PointLight("Omni", new BABYLON.Vector3(0, 2, 8), scene);

            var camera = new BABYLON.ArcRotateCamera("ArcRotateCamera", 1, 0.8, 20, new BABYLON.Vector3(0, 0, 0), scene);
            camera.attachControl(canvas, true);
            var fountain = BABYLON.Mesh.CreateTorus("torus", 2, 1, 8, scene, false);

            var particleSystem = new BABYLON.ParticleSystem("particles", 2000, scene);
            particleSystem.particleTexture = new BABYLON.Texture("images/dot.jpg", scene);
            particleSystem.textureMask = new BABYLON.Color4(0.1, 0.8, 0.8, 1.0);
            particleSystem.emitter = fountain;
            particleSystem.minEmitBox = new BABYLON.Vector3(-1, 0, 0); // Starting all from
            particleSystem.maxEmitBox = new BABYLON.Vector3(1, 0, 0); // To...
            particleSystem.color1 = new BABYLON.Color4(0.7, 0.8, 1.0, 1.0);
            particleSystem.color2 = new BABYLON.Color4(0.2, 0.5, 1.0, 1.0);
            particleSystem.colorDead = new BABYLON.Color4(0, 0, 0.2, 0.0);
            particleSystem.minSize = 0.1;
            particleSystem.maxSize = 0.5;
            particleSystem.minLifeTime = 0.3;
            particleSystem.maxLifeTime = 1.5;
            particleSystem.emitRate = 1500;
            particleSystem.blendMode = BABYLON.ParticleSystem.BLENDMODE_ONEONE;
            particleSystem.gravity = new BABYLON.Vector3(0,-9.81, 0);
            particleSystem.direction1 = new BABYLON.Vector3(-7, 8, 3);
            particleSystem.direction2 = new BABYLON.Vector3(7, 8,-3);
            particleSystem.minAngularSpeed = 0;
            particleSystem.maxAngularSpeed = Math.PI;
            particleSystem.minEmitPower = 1;
            particleSystem.maxEmitPower = 3;
            particleSystem.updateSpeed = 0.005;
            particleSystem.start();
            var keys = [];
            var animation = new BABYLON.Animation("animation", "rotation.x", 30, BABYLON.Animation.ANIMATIONTYPE_float,
                                   BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE);

            // At the animation key 0, the value of scaling is "1"
            keys.push({
               frame: 0,
               value: 0
            });
            // At the animation key 50, the value of scaling is "0.2"
            keys.push({
               frame: 50,
               value: Math.PI
            });
            // At the animation key 100, the value of scaling is "1"
            keys.push({
               frame: 100,
               value: 0
            });
            // Launch animation
            animation.setKeys(keys);
            fountain.animations.push(animation);
            scene.beginAnimation(fountain, 0, 100, true);
            return scene;
         }
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

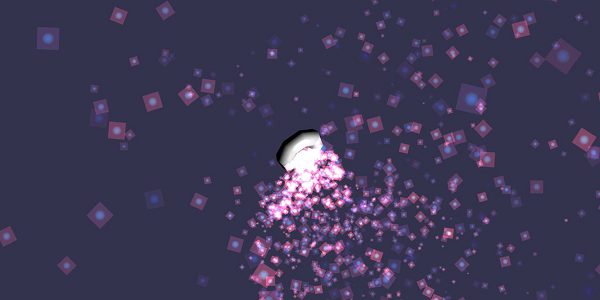

输出

上面的代码行生成以下输出-

在这个演示中，我们使用了名为 dot.jpg 的图像。图片保存在本地的images/文件夹中，也贴在下面供参考。您可以下载任何您选择的图片并在演示链接中使用。

以下是用于粒子纹理的图像： images/dot.jpg

演示 2

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Ball/Ground Demo</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);

         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3( .5, .5, .5);

            var camera = new BABYLON.ArcRotateCamera("camera1",  0, 0, 0, new BABYLON.Vector3(0, 0,-0), scene);
            camera.setPosition(new BABYLON.Vector3(-100, 0,-100));
            camera.attachControl(canvas, true);

            var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(1, 0.5, 0), scene);
            var pl = new BABYLON.PointLight("pl", new BABYLON.Vector3(0, 0, 0), scene);
            var gmat = new BABYLON.StandardMaterial("mat1", scene);
            gmat.alpha = 1.0;

            var ground =  BABYLON.Mesh.CreateGround("ground", 100, 100, 20, scene);
            ground.material = gmat;
            gmat.wireframe = true;
            var particleSystem = new BABYLON.ParticleSystem("particles", 2000, scene);
            particleSystem.particleTexture = new BABYLON.Texture("images/dot.jpg", scene);
            particleSystem.textureMask = new BABYLON.Color4(0.1, 0.8, 0.8, 1.0);
            particleSystem.emitter = ground;
            particleSystem.minEmitBox = new BABYLON.Vector3(-1, 0, 0); // Starting all from
            particleSystem.maxEmitBox = new BABYLON.Vector3(1, 0, 0); // To...
            particleSystem.color1 = new BABYLON.Color4(0.7, 0.8, 1.0, 1.0);
            particleSystem.color2 = new BABYLON.Color4(0.2, 0.5, 1.0, 1.0);
            particleSystem.colorDead = new BABYLON.Color4(0, 0, 0.2, 0.0);
            particleSystem.minSize = 0.1;
            particleSystem.maxSize = 0.5;
            particleSystem.minLifeTime = 0.3;
            particleSystem.maxLifeTime = 1.5;
            particleSystem.emitRate = 1500;
            particleSystem.blendMode = BABYLON.ParticleSystem.BLENDMODE_ONEONE;
            particleSystem.gravity = new BABYLON.Vector3(0,-9.81, 0);
            particleSystem.direction1 = new BABYLON.Vector3(-7, 8, 3);
            particleSystem.direction2 = new BABYLON.Vector3(7, 8,-3);
            particleSystem.minAngularSpeed = 0;
            particleSystem.maxAngularSpeed = Math.PI;
            particleSystem.minEmitPower = 1;
            particleSystem.maxEmitPower = 3;
            particleSystem.updateSpeed = 0.005;
            particleSystem.start();
            var keys = [];
            var animation = new BABYLON.Animation("animation", "rotation.x", 30, BABYLON.Animation.ANIMATIONTYPE_float,
                           BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE);
            // At the animation key 0, the value of scaling is "1"
            keys.push({
               frame: 0,
               value: 0
            });
            // At the animation key 50, the value of scaling is "0.2"
            keys.push({
               frame: 50,
               value: Math.PI
            });
            // At the animation key 100, the value of scaling is "1"
            keys.push({
               frame: 100,
               value: 0
            });
            // Launch animation
            animation.setKeys(keys);
            ground.animations.push(animation);

            //scene.beginAnimation(ground, 0, 100, true);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

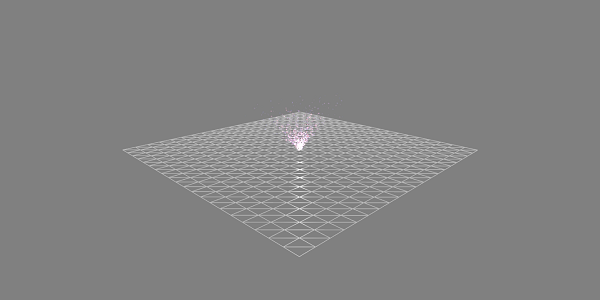

输出

动画演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Ball/Ground Demo</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);

         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3( .5, .5, .5);

            var camera = new BABYLON.ArcRotateCamera("camera1",  0, 0, 0, new BABYLON.Vector3(0, 0,-0), scene);
            camera.setPosition(new BABYLON.Vector3(-100, 0,-100));
            camera.attachControl(canvas, true);

            var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(1, 0.5, 0), scene);
            var pl = new BABYLON.PointLight("pl", new BABYLON.Vector3(0, 0, 0), scene);
            var gmat = new BABYLON.StandardMaterial("mat1", scene);
            gmat.alpha = 1.0;

            var ground =  BABYLON.Mesh.CreateGround("ground", 100, 100, 20, scene);
            ground.material = gmat;
            gmat.wireframe = true;
            var particleSystem = new BABYLON.ParticleSystem("particles", 2000, scene);
            particleSystem.particleTexture = new BABYLON.Texture("images/dot.jpg", scene);
            particleSystem.textureMask = new BABYLON.Color4(0.1, 0.8, 0.8, 1.0);
            particleSystem.emitter = ground;
            particleSystem.minEmitBox = new BABYLON.Vector3(-1, 0, 0); // Starting all from
            particleSystem.maxEmitBox = new BABYLON.Vector3(1, 0, 0); // To...
            particleSystem.color1 = new BABYLON.Color4(0.7, 0.8, 1.0, 1.0);
            particleSystem.color2 = new BABYLON.Color4(0.2, 0.5, 1.0, 1.0);
            particleSystem.colorDead = new BABYLON.Color4(0, 0, 0.2, 0.0);
            particleSystem.minSize = 0.1;
            particleSystem.maxSize = 0.5;
            particleSystem.minLifeTime = 0.3;
            particleSystem.maxLifeTime = 1.5;
            particleSystem.emitRate = 1500;
            particleSystem.blendMode = BABYLON.ParticleSystem.BLENDMODE_ONEONE;
            particleSystem.gravity = new BABYLON.Vector3(0,-9.81, 0);//gravity for the particle.
            particleSystem.direction1 = new BABYLON.Vector3(-7, 8, 3);
            particleSystem.direction2 = new BABYLON.Vector3(7, 8,-3);

            //random direction for the particles on the scene
            particleSystem.minAngularSpeed = 0;
            particleSystem.maxAngularSpeed = Math.PI;
            particleSystem.minEmitPower = 1;
            particleSystem.maxEmitPower = 3;
            particleSystem.updateSpeed = 0.005;
            particleSystem.start();
            var keys = [];
            var animation = new BABYLON.Animation("animation", "rotation.x", 30, BABYLON.Animation.ANIMATIONTYPE_float,
                           BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE);

            // At the animation key 0, the value of scaling is "1"
            keys.push({
               frame: 0,
               value: 0
            });
            // At the animation key 50, the value of scaling is "0.2"
            keys.push({
               frame: 50,
               value: Math.PI
            });
            // At the animation key 100, the value of scaling is "1"
            keys.push({
               frame: 100,
               value: 0
            });
            // Launch animation
            animation.setKeys(keys);
            ground.animations.push(animation);
            scene.beginAnimation(ground, 0, 100, true);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

输出

上面的代码行生成以下输出-

以下是用于粒子纹理的图像： images/dot.jpg

演示 2

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Ball/Ground Demo</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);

         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3( .5, .5, .5);

            var camera = new BABYLON.ArcRotateCamera("camera1",  0, 0, 0, new BABYLON.Vector3(0, 0,-0), scene);
            camera.setPosition(new BABYLON.Vector3(-100, 0,-100));
            camera.attachControl(canvas, true);

            var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(1, 0.5, 0), scene);
            var pl = new BABYLON.PointLight("pl", new BABYLON.Vector3(0, 0, 0), scene);
            var gmat = new BABYLON.StandardMaterial("mat1", scene);
            gmat.alpha = 1.0;

            var ground =  BABYLON.Mesh.CreateGround("ground", 100, 100, 20, scene);
            ground.material = gmat;
            gmat.wireframe = true;
            var particleSystem = new BABYLON.ParticleSystem("particles", 2000, scene);
            particleSystem.particleTexture = new BABYLON.Texture("images/dot.jpg", scene);
            particleSystem.textureMask = new BABYLON.Color4(0.1, 0.8, 0.8, 1.0);
            particleSystem.emitter = ground;
            particleSystem.minEmitBox = new BABYLON.Vector3(-1, 0, 0); // Starting all from
            particleSystem.maxEmitBox = new BABYLON.Vector3(1, 0, 0); // To...
            particleSystem.color1 = new BABYLON.Color4(0.7, 0.8, 1.0, 1.0);
            particleSystem.color2 = new BABYLON.Color4(0.2, 0.5, 1.0, 1.0);
            particleSystem.colorDead = new BABYLON.Color4(0, 0, 0.2, 0.0);
            particleSystem.minSize = 0.1;
            particleSystem.maxSize = 0.5;
            particleSystem.minLifeTime = 0.3;
            particleSystem.maxLifeTime = 1.5;
            particleSystem.emitRate = 1500;
            particleSystem.blendMode = BABYLON.ParticleSystem.BLENDMODE_ONEONE;
            particleSystem.gravity = new BABYLON.Vector3(0,-9.81, 0);
            particleSystem.direction1 = new BABYLON.Vector3(-7, 8, 3);
            particleSystem.direction2 = new BABYLON.Vector3(7, 8,-3);
            particleSystem.minAngularSpeed = 0;
            particleSystem.maxAngularSpeed = Math.PI;
            particleSystem.minEmitPower = 1;
            particleSystem.maxEmitPower = 3;
            particleSystem.updateSpeed = 0.005;
            particleSystem.start();
            var keys = [];
            var animation = new BABYLON.Animation("animation", "rotation.x", 30, BABYLON.Animation.ANIMATIONTYPE_float,
                           BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE);
            // At the animation key 0, the value of scaling is "1"
            keys.push({
               frame: 0,
               value: 0
            });
            // At the animation key 50, the value of scaling is "0.2"
            keys.push({
               frame: 50,
               value: Math.PI
            });
            // At the animation key 100, the value of scaling is "1"
            keys.push({
               frame: 100,
               value: 0
            });
            // Launch animation
            animation.setKeys(keys);
            ground.animations.push(animation);

            //scene.beginAnimation(ground, 0, 100, true);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

输出

动画演示

<!doctype html>
<html>
   <head>
      <meta charset = "utf-8">
      <title>BabylonJs-Ball/Ground Demo</title>
      <script src = "babylon.js"></script>
      <style>
         canvas {width: 100%; height: 100%;}
      </style>
   </head>
   <body>
      <canvas id = "renderCanvas"></canvas>
      <script type = "text/javascript">
         var canvas = document.getElementById("renderCanvas");
         var engine = new BABYLON.Engine(canvas, true);

         var createScene  = function() {
            var scene = new BABYLON.Scene(engine);
            scene.clearColor = new BABYLON.Color3( .5, .5, .5);

            var camera = new BABYLON.ArcRotateCamera("camera1",  0, 0, 0, new BABYLON.Vector3(0, 0,-0), scene);
            camera.setPosition(new BABYLON.Vector3(-100, 0,-100));
            camera.attachControl(canvas, true);

            var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(1, 0.5, 0), scene);
            var pl = new BABYLON.PointLight("pl", new BABYLON.Vector3(0, 0, 0), scene);
            var gmat = new BABYLON.StandardMaterial("mat1", scene);
            gmat.alpha = 1.0;

            var ground =  BABYLON.Mesh.CreateGround("ground", 100, 100, 20, scene);
            ground.material = gmat;
            gmat.wireframe = true;
            var particleSystem = new BABYLON.ParticleSystem("particles", 2000, scene);
            particleSystem.particleTexture = new BABYLON.Texture("images/dot.jpg", scene);
            particleSystem.textureMask = new BABYLON.Color4(0.1, 0.8, 0.8, 1.0);
            particleSystem.emitter = ground;
            particleSystem.minEmitBox = new BABYLON.Vector3(-1, 0, 0); // Starting all from
            particleSystem.maxEmitBox = new BABYLON.Vector3(1, 0, 0); // To...
            particleSystem.color1 = new BABYLON.Color4(0.7, 0.8, 1.0, 1.0);
            particleSystem.color2 = new BABYLON.Color4(0.2, 0.5, 1.0, 1.0);
            particleSystem.colorDead = new BABYLON.Color4(0, 0, 0.2, 0.0);
            particleSystem.minSize = 0.1;
            particleSystem.maxSize = 0.5;
            particleSystem.minLifeTime = 0.3;
            particleSystem.maxLifeTime = 1.5;
            particleSystem.emitRate = 1500;
            particleSystem.blendMode = BABYLON.ParticleSystem.BLENDMODE_ONEONE;
            particleSystem.gravity = new BABYLON.Vector3(0,-9.81, 0);//gravity for the particle.
            particleSystem.direction1 = new BABYLON.Vector3(-7, 8, 3);
            particleSystem.direction2 = new BABYLON.Vector3(7, 8,-3);

            //random direction for the particles on the scene
            particleSystem.minAngularSpeed = 0;
            particleSystem.maxAngularSpeed = Math.PI;
            particleSystem.minEmitPower = 1;
            particleSystem.maxEmitPower = 3;
            particleSystem.updateSpeed = 0.005;
            particleSystem.start();
            var keys = [];
            var animation = new BABYLON.Animation("animation", "rotation.x", 30, BABYLON.Animation.ANIMATIONTYPE_float,
                           BABYLON.Animation.ANIMATIONLOOPMODE_CYCLE);

            // At the animation key 0, the value of scaling is "1"
            keys.push({
               frame: 0,
               value: 0
            });
            // At the animation key 50, the value of scaling is "0.2"
            keys.push({
               frame: 50,
               value: Math.PI
            });
            // At the animation key 100, the value of scaling is "1"
            keys.push({
               frame: 100,
               value: 0
            });
            // Launch animation
            animation.setKeys(keys);
            ground.animations.push(animation);
            scene.beginAnimation(ground, 0, 100, true);
            return scene;
         };
         var scene = createScene();
         engine.runRenderLoop(function() {
            scene.render();
         });
      </script>
   </body>
</html>

输出

上面的代码行生成以下输出-

说明

上面的演示展示了一个带有线框材质的地面，粒子系统是从中心产生的。

找工作要求35岁以下，35岁以上的程序员都干什么去了？

长久以来，一直有一个问题困扰着技术人——如何打破“程序员的35岁职业魔咒”，这一天迟早会到来，或早或晚。

或许是选错了行业，程序员薪水虽高，但光鲜的外表下，背后的苦衷只有自己知道。三十多岁本该是一个人事业的黄金期，但技术变化日新月异，行业竞争异常残酷，对一个企业来说，永远有比你更年轻、劳动成本更低的人可以选择，这让你的中年危机提前到来。破局的智慧可以看看这本书！>>

<< BabylonJS 材料 BabylonJS 相机 >>

昵称：邮箱：
